Compact Finger-Jointing Machines for maximum precision
HOWIAL Flyback HVP-28 are proven compact finger-jointing machines that perfectly combine precision, efficiency, and long service life. For more than six decades, HOWIAL has represented innovative solutions in finger jointing. With these finger-jointing machines, we provide machines that are particularly designed for medium-sized companies and flexible production environments—compact in design, yet high in performance.
Our compact machines are individually tailored to your requirements. Whether small window frames, glulam lamellas, or KVH (structural timber) beams—all cross-sections can be easily produced. You also have the choice between a horizontal or vertical finger joint profile. And we offer maximum flexibility for glue application systems: the compact machine is optimally adapted to various 1C or 2C glue application systems.
HOWIAL Flyback HVP-28 – Facts and Figures
Board length on infeed side: 700 – 6,000 mm
Board length on outfeed side: 2,000 – 50,000 mm
Board thickness: 20 – 180 mm
Board widths: 60 – 320 mm
Pressing force: 150 – 400 kN
Hydraulic running meter capacity: 500 – 1,400 rm/hour
Capacity: up to 7–8 joints per minute
Milling spindles: two precision units for low-tear finger joints
Gluing technology: integrated systems for PU glues and MUF, PVAC glues, etc.
Design: compact, robust, easy to maintain, precise setting times: very short, for flexible order changes
Operation: user-friendly control system with visual feedback
Integration: can be used as standalone machine or in production lines
Applications: Solid wood, glued laminated timber, lumber, furniture, windows, doors
Sustainability: Efficient material utilization, use of residual wood
The modular design permits easy adaptation to individual production requirements. Thanks to short setting times, the machine is particularly cost-effective for changing orders and medium batch sizes.
A HOWIAL Flyback HVP-28 impresses with glue application on either one or both sides via a special comb, ensuring maximum precision through microprocessor-controlled pumps. Integrated finger-jointing operations provide optimized jointing accuracy and consistently high joint quality. Due to their heavy-duty and robust construction, the machines have a particularly long service life and offer maximum operational reliability in daily use.
The combination of all process steps in a single setup lead to highest joint quality, which allows even hardwood to be processed. The compact finger-jointing machines are characterized by high technical availability and are ideally suitable for flexible use and special applications.
Thanks to its compact design, the Flyback HVP-28 offers excellent price-performance ratio with minimal space requirements—an investment that perfectly combines quality, efficiency, and cost-effectiveness.
Machine types for vertical finger jointing:
| Technical data | Flyback-HVP-28-150 | Flyback-HVP-28-250 | Flyback-HVP-28-300 | Flyback-HVP-28-400 |
| Max. pressing force (kN) | 150 | 250 | 300 | 400 |
| Max. cycle power (joints/min.) | 8 | 8 | 7 | 7 |
| Running meter capacity per hour | 500 - 1,500 | 500 - 1,500 | 500 - 1,300 | 500 - 1,300 |
Machine types for horizontal finger jointing:
| Technical data | Flyback-HVP-28W-150 | Flyback-HVP-28W-250 |
| Max. pressing force (kN) | 150 | 250 |
| Max. cycle power (joints/min.) | 6 | 6 |
| Running meter capacity per hour | 500 - 1,000 | 500 - 1,000 |
Cross conveyor

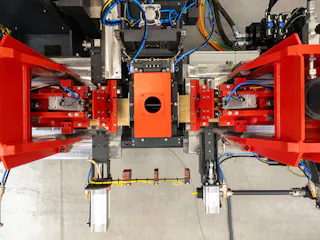

Flyback finger jointing machine for 400 kN
Double cross conveyor: Infeed for finger jointing machine
Outfeed of compact finger-jointing machine
Advantages of the HOWIAL Flyback HVP-28 Compact Finger-Jointing Machine
The finger-jointing process includes waste-free production to use wood as a raw material efficiently. As a result, the HVP-28 supports sustainable and environmentally friendly manufacturing.
Precise processing and robust design provide consistently high-quality joints. Every HOWIAL Flyback HVP-28 is tested before delivery to ensure the highest quality.
Short setting times, optimized workflows, and reliable process control reduce downtime and increase throughput—a clear advantage for companies that need to react quickly and flexibly.
Whether as standalone machine or integrated into a complete production line — a Flyback HVP-28 adapts to your production requirements. The control system is intuitive and can be combined with additional automation modules.
Typical applications for the Flyback HVP-28 compact finger-jointing machine
- Glulam – efficient processing of short wood segments
- Structural timber & glulam beams – secure and stable joints for timber construction
- Glued multi-layer panels such as CLT – small production lines or startups
- Window and door production – precise wood joints for construction elements
User-Friendly Control & Service
The user-friendly control system simplifies daily operation: clear user interfaces, visual feedback, and automatic adjustments. Thanks to the modular design, components can be easily maintained or updated. We also provide comprehensive service — from advice and installation to spare parts and maintenance.
Compact finger-jointing machines from HOWIAL are an investment in the future.
With a HOWIAL Flyback HVP-28, you are choosing a compact finger-jointing machine that combines efficiency and quality. Robust design, service-friendly, and fit for the future — a machine that optimizes your production and quickly pays for itself.
