TAILOR-MADE CONVEYING TECHNOLOGY FOR VEHICLE BODY AND PAINT SHOPS

People-mover conveyors

Our people-mover conveyors are vital in the automotive sector because they allow assembly workers to move with the vehicle. This is less tiring because workers can stand while working and don’t need to walk alongside the moving vehicle body.Thanks to belt widths of up to 4 metres, MINDA assembly and inspection belts provide plenty of space for workers to operate on – even if the vehicle doors are wide open.

The minimum overall height mainly depends on the conveyor’s length, width and load. Minimum overall heights for assembly and inspection belts are 300 mm without any elevation. Therefore, the pit depth required for ground-level conveying is low.

The consistently modular design keeps the number of mechanical and control components low. This makes warehousing spare and wear parts less complicated. If required, the conveyors can be extended or shortened and are therefore prepared for tomorrow’s demands.

The strengths of MINDA people-mover conveyors

  • Vehicles and workers conveyed ergonomically on one single belt
  • Practical belt width with plenty of room to manoeuvre
  • B1-certified to DIN EN 13501-1
  • ESD-compliant
  • Available in a variant preventing damage from water accumulation
  • Low overall height/pit depth

Manrider System

Our manrider system with modular people-mover conveyors offers adaptable layouts with very low overall heights of just 120 mm.

More ergonomic and efficient people movers

Our people-mover conveyors are vital in the automotive sector because they allow assembly workers to move with the vehicle. This is less tiring because workers can stand while working and don’t need to walk alongside the moving vehicle body.

The modular people-mover conveyor offers a stable and safe platform and ensures that there’s a distance, important for health and safety reasons, between the vehicle body and the area where materials are deposited. Our special drive technology ensures exact synchronicity of the modular people-mover conveyors and therefore maximum productivity when assembling vehicles.

Positioning people-mover conveyors

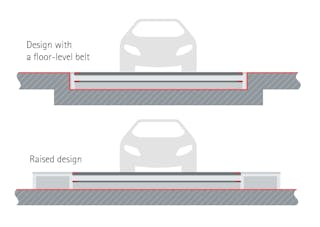

The people-mover conveyors can be fitted at ground-level or raised. Raised systems have ramps and side platforms for optimum accessibility. They can be supplied and assembled with tubs and fully enclosed. The overall height is between 250 and 400 mm.

MINDA components in operation

Our wide range of modular components offers superior efficiency and economy while reflecting customised requirements. Benefit from our longstanding expertise in the automotive sector when it comes to demand-based planning, executing projects and support provided by our customer services team. We’re a reliable partner and have in-depth expertise to contribute.
